Scicos-Hardware Description Language Tool

Overview

Scicos-HDL integrates the hardware circuit, algorithm and Scilab/Scicos environment as a plat for digital circuit design, simulation and Hardware Description Language generation. Scicos-HDL shortens digital circuit design cycles by helping you create the hardware representation in an modeling-friendly development environment. You can combine existing Scicos blocks with Scicos-HDL blocks and to link system-level design . It is a open source project under Scilab ‘s license, the release vision can help to design and simulate some small-scale digital circuit system with its Hardware Description Language generation. We now will make it as a tool for teaching digital circuit design. Now it supports SystemC, VHDL&Verilog Languages.

Features:

  • Links The Scilab/Scicos with the Digital circuit design(EDA).

  • Integrates the hardware circuit, algorithm and Scilab/Scicos environment as a plat for digital circuit design, simulation and Hardware Description Language generation.

  • Enables complex signal processing combined with powerful mathematical tools.

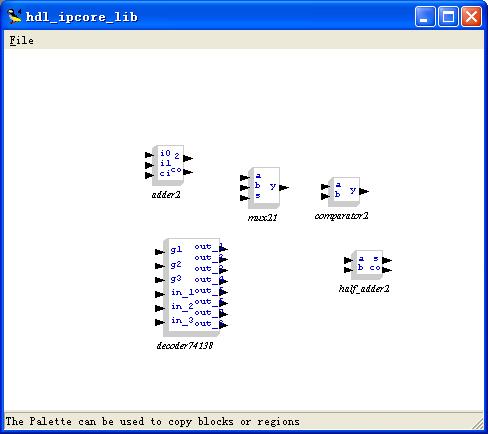

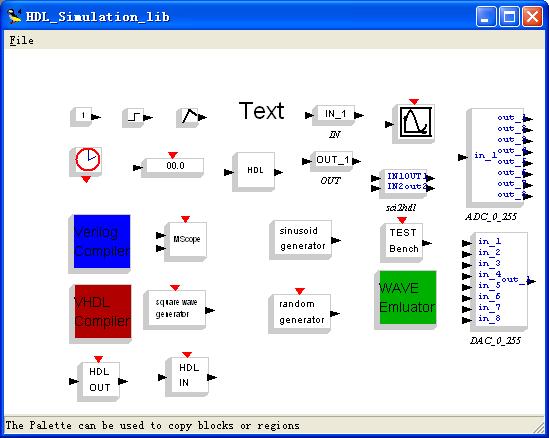

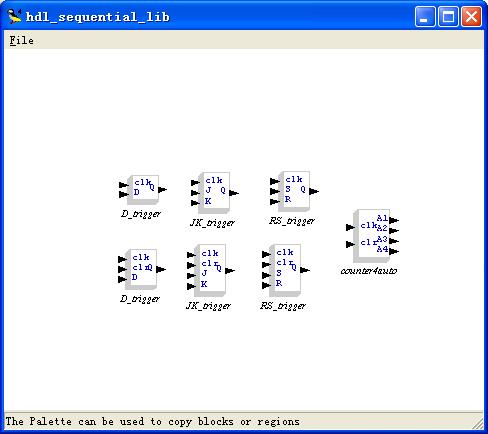

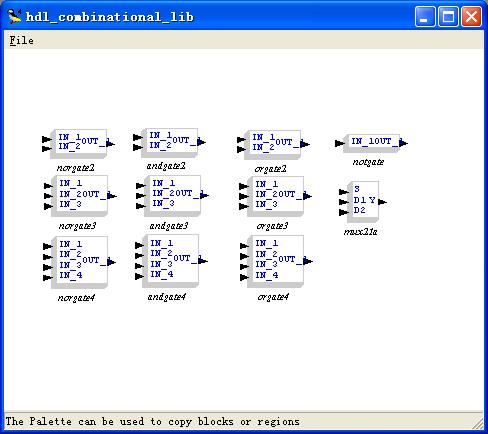

  • Inside libraries: Sequential logic library, Combinational logic library, Ipcore library, simulation library.

  • Support mixed-simulation with the Scicos blocks.

  • Automatically generates Description Language(SystemC ,VHDL and Verilog ).

  • Automatic propagation of signal names to generated HDL.

  • You can specify most values in the block parameter dialog boxes using Scicos workspace.

  • Mix-simulation with original Scicos blocks and Scicos-HDL blocks.

  • Open interface for users to add blocks.

  • Under GPL LICENCE.

Updates and News

  • 2009-05-22 - New version released
  • 2009-03-25 - New GUI of blocks in the New version
